iOS Live Activities in React Native: A Complete Guide
Author
Date
Book a call
Understanding Live Activities & Dynamic Island

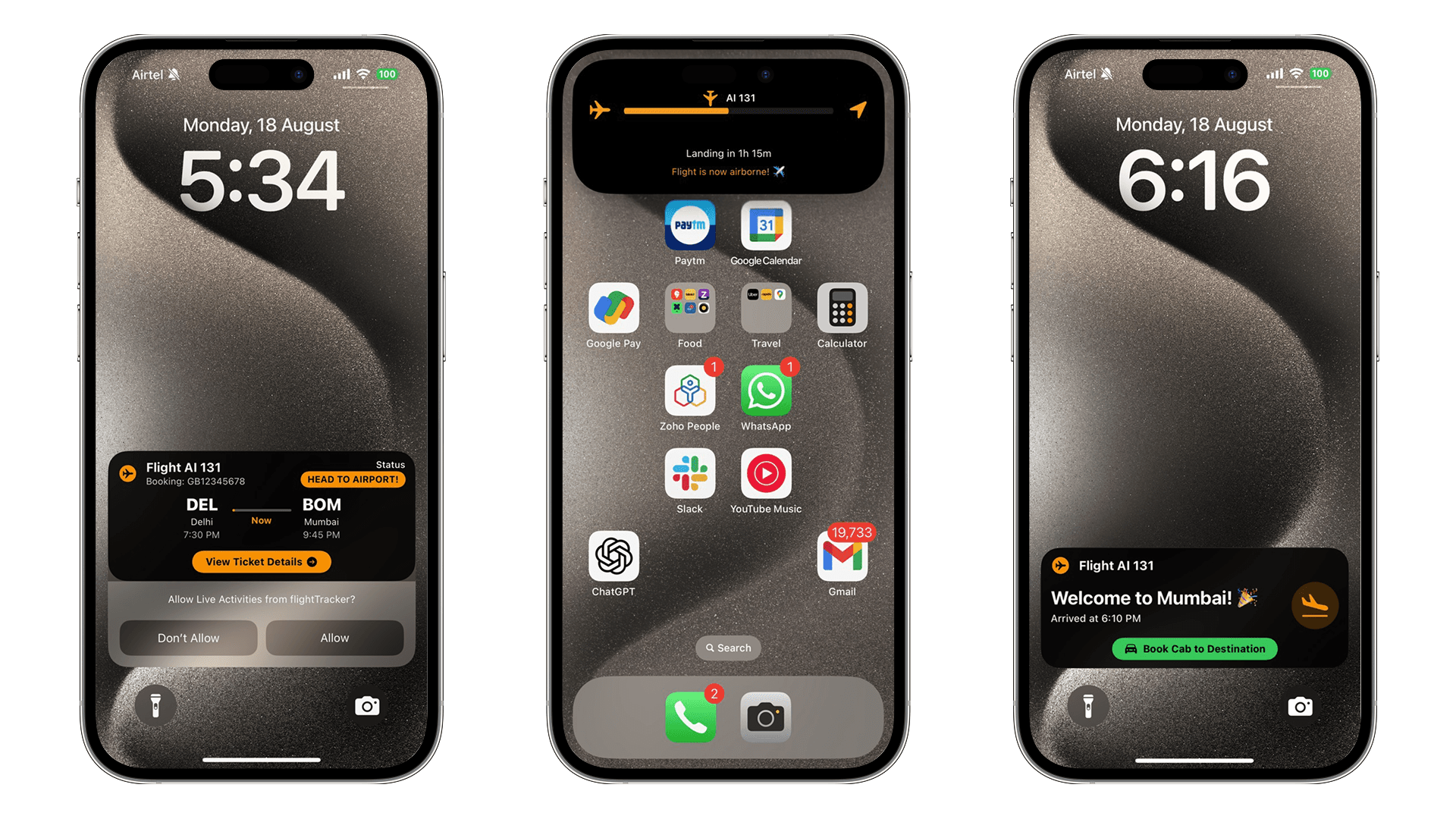

Live Activities change how users engage with time-sensitive information. They bring real-time updates straight to the iPhone's Lock Screen and Dynamic Island. For flight-tracking apps, this means you do not have to keep opening them to check departure gates, delays, or boarding status.
Dynamic Island Integration (iPhone 14 Pro and later) provides three distinct presentation modes:
- Minimal: Single icon or short text (gate number)
- Compact: Leading and trailing elements (flight status + countdown)
- Expanded: Full, detailed view with interactive elements
In flight-tracking scenarios, users can monitor boarding countdowns, receive gate-change notifications, and access quick actions like viewing boarding passes—all without unlocking their device.
Key Benefits:
- 40% higher engagement than traditional push notifications
- Persistent visibility during critical travel moments
- Seamless integration with iOS design language
- Real-time updates even when the app is terminated
Project Configuration Requirements
Push Notification Setup
Live Activities depend on Apple Push Notification Service (APNs) for real-time updates. Configure push notifications first:

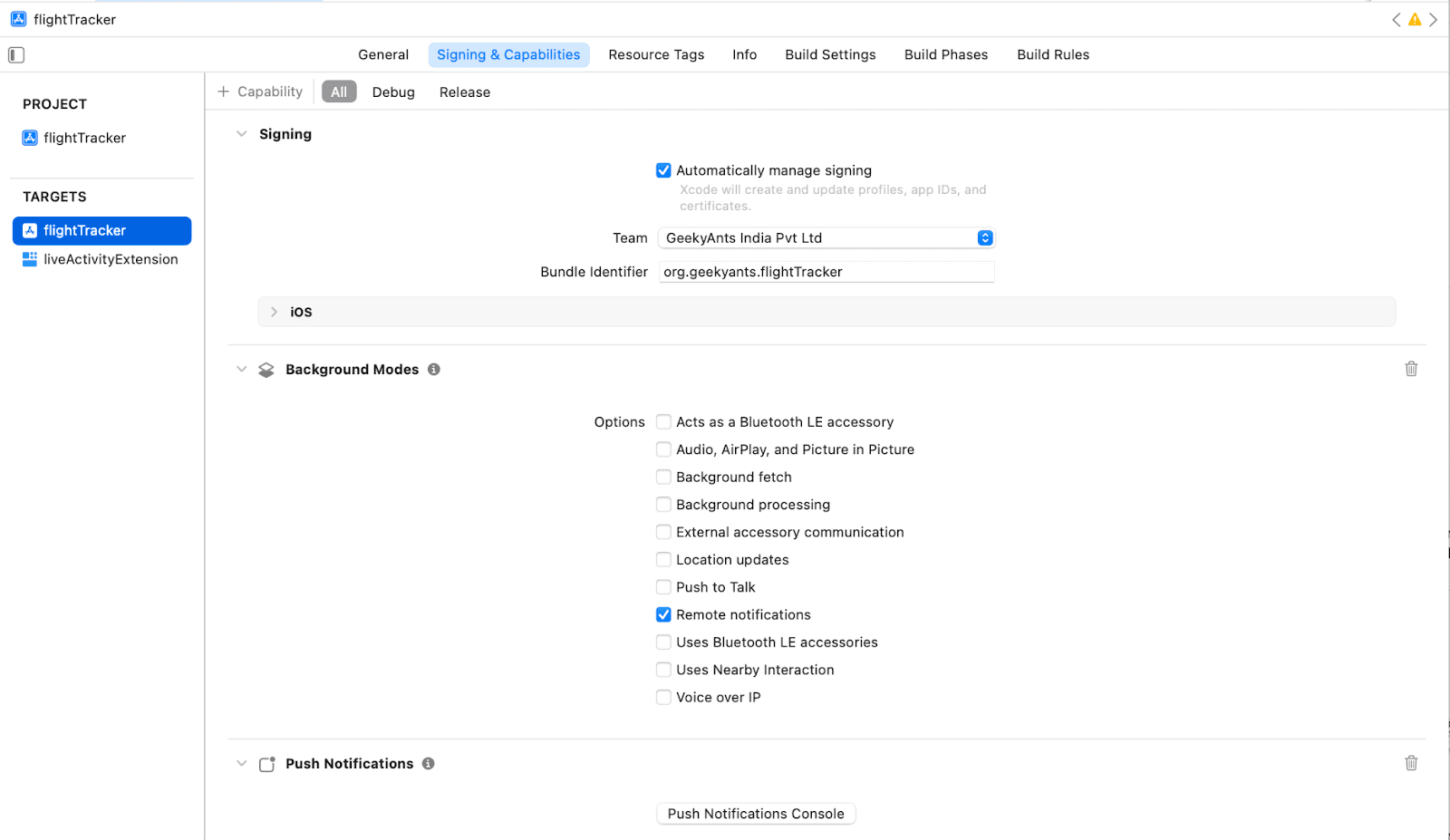

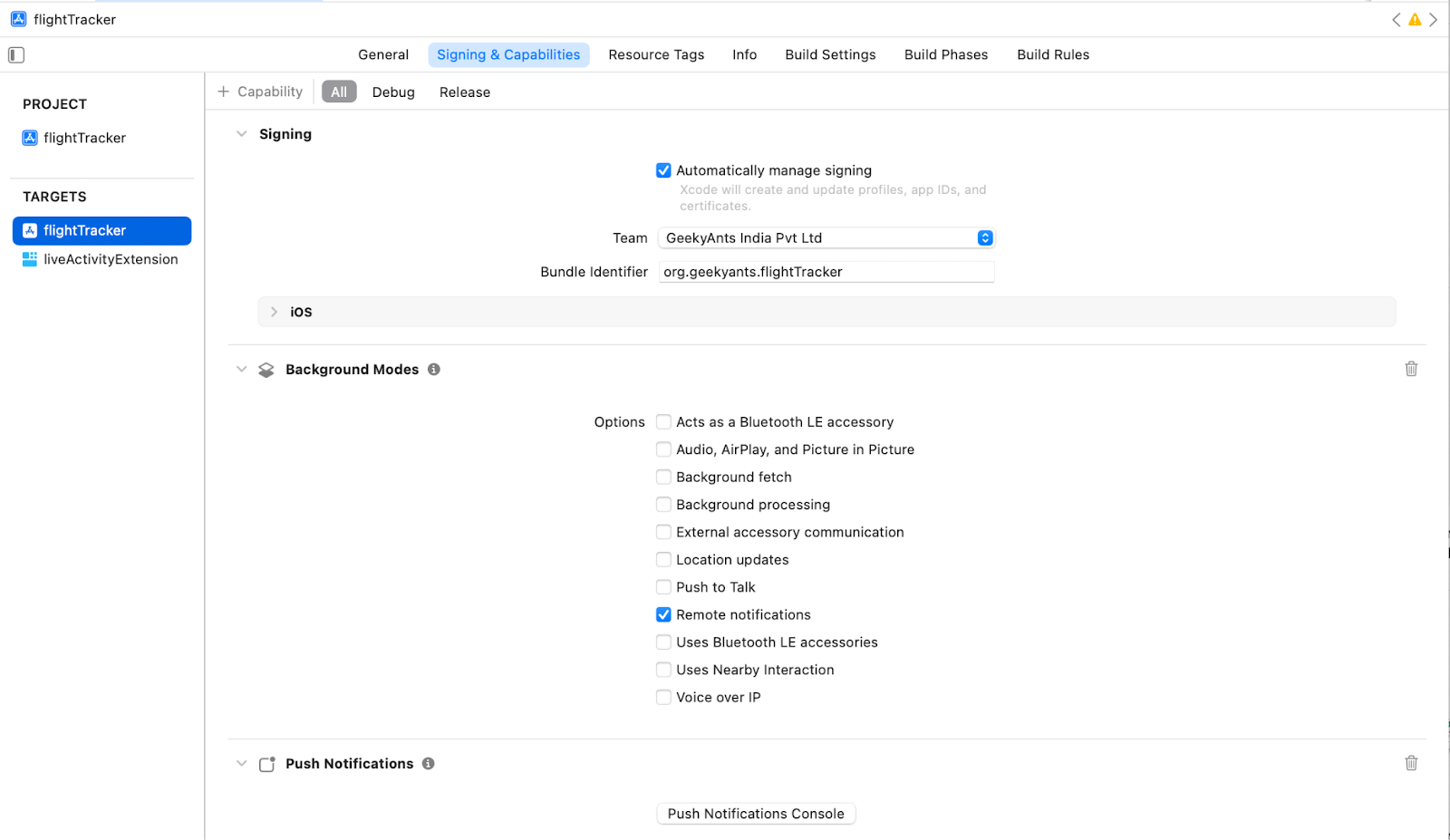

- In Xcode: Select your app target → Signing & Capabilities
- Add Capability: Click "+" and select "Push Notifications"
- Verify Entitlements: Ensure aps-environment is properly configured
Info.plist Configuration
The NSSupportsLiveActivitiesFrequentUpdates key is essential for flight tracking as it allows updates more frequently than the standard limit—critical for gate changes and boarding updates.
Widget Extension Target
Create a separate Widget Extension for Live Activities:

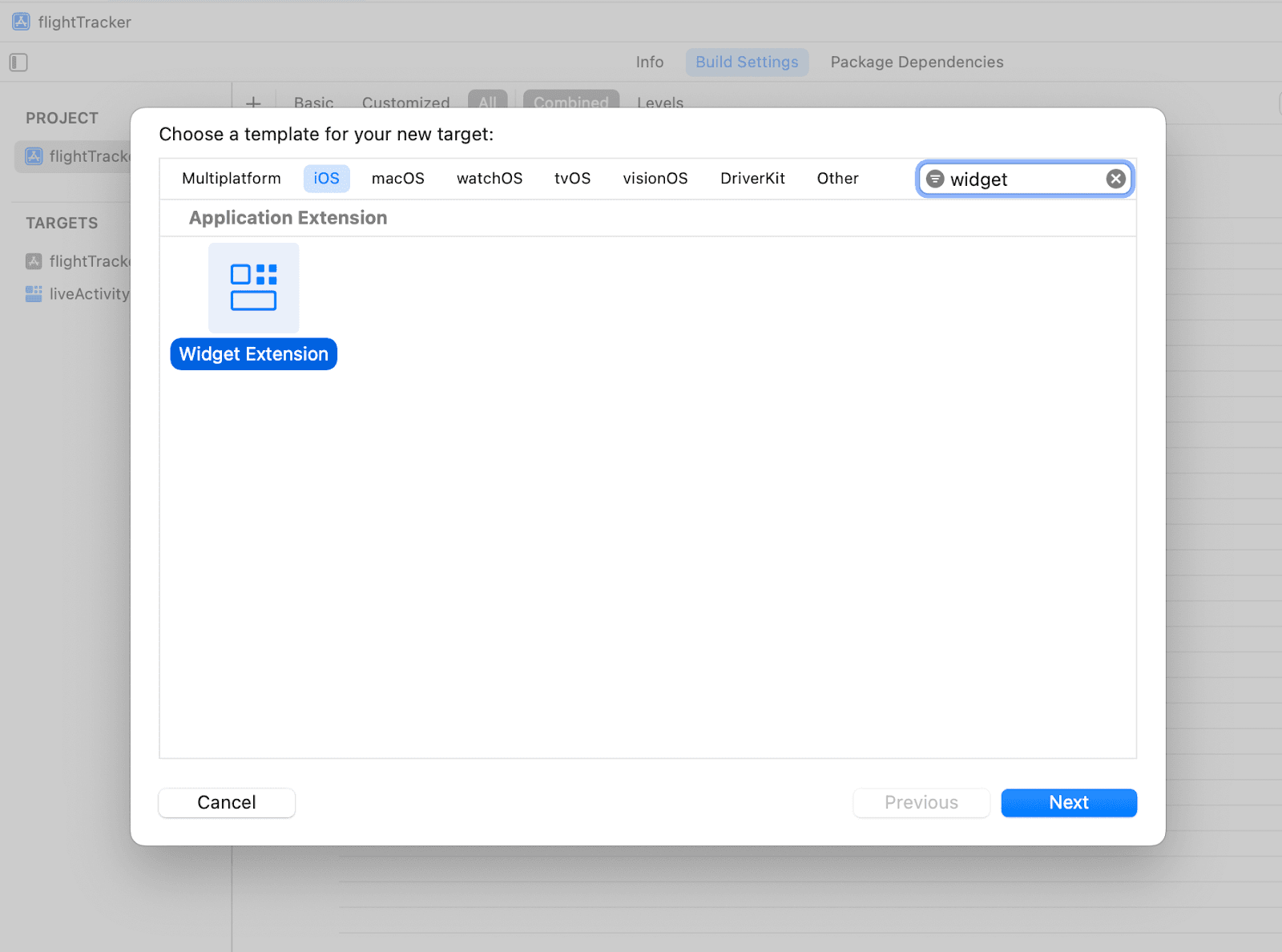

- Add Target: File → New → Target → Widget Extension
- Configuration: Name it FlightTrackerWidget, include Live Activity intent
- Build Settings: Set deployment target to iOS 16.1+, configure App Groups for data sharing
Build Phases Critical Step
For React Native compatibility, verify the Build Phases configuration:

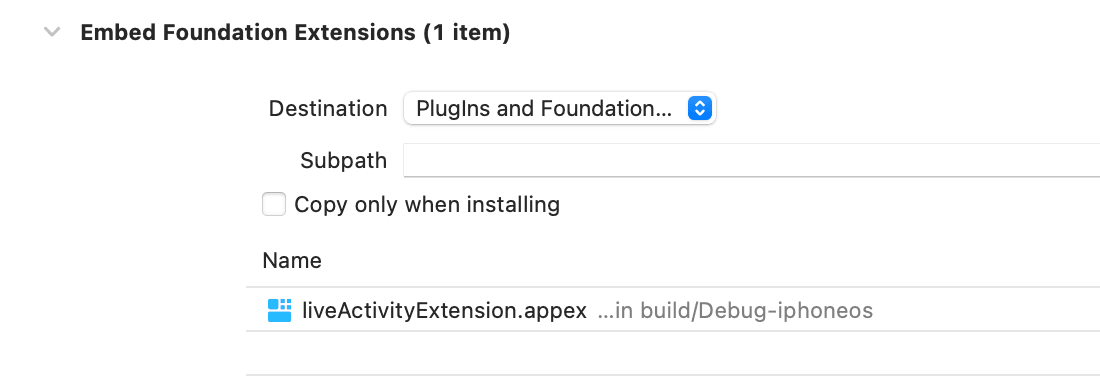

- Navigate to Build Phases → Embed App Extensions
- Ensure "Copy only when installing" is unchecked
This step is crucial for Live Activities to function properly in React Native environments.
Live Activity Widget Structure
Core SwiftUI Implementation
The Widget Extension contains several key files, but focus on these essential components:
FlightActivityWidget.swift (UI Implementation example ):
Understanding the Architecture:
- ActivityAttributes: Defines both static data (flight details) and dynamic state (status, gate)
- Lock Screen Layout: Primary real estate for detailed information
- Dynamic Island Regions: Different areas serve specific purposes (leading for status, trailing for gate info)
Native Module Bridge Implementation
To control Live Activities from React Native, create a bridge using three essential files:
1. LiveActivityModule.swift (Core Logic)
2. RCTFlightActivityModule.m (Objective-C Bridge)
3. FlightActivity-Bridging-Header.h
Critical Setup: Add the bridging header file path in Build Settings → Swift Compiler - General → Objective-C Bridging Header.
React Native Service Integration
FlightActivityService.ts
Creating a service to manage Live Activities from JavaScript:
App Integration (React based Example)
Push Notifications Architecture
Backend Implementation (Node.JS based example)
Live Activities can receive updates even when your app is completely terminated through APNs:

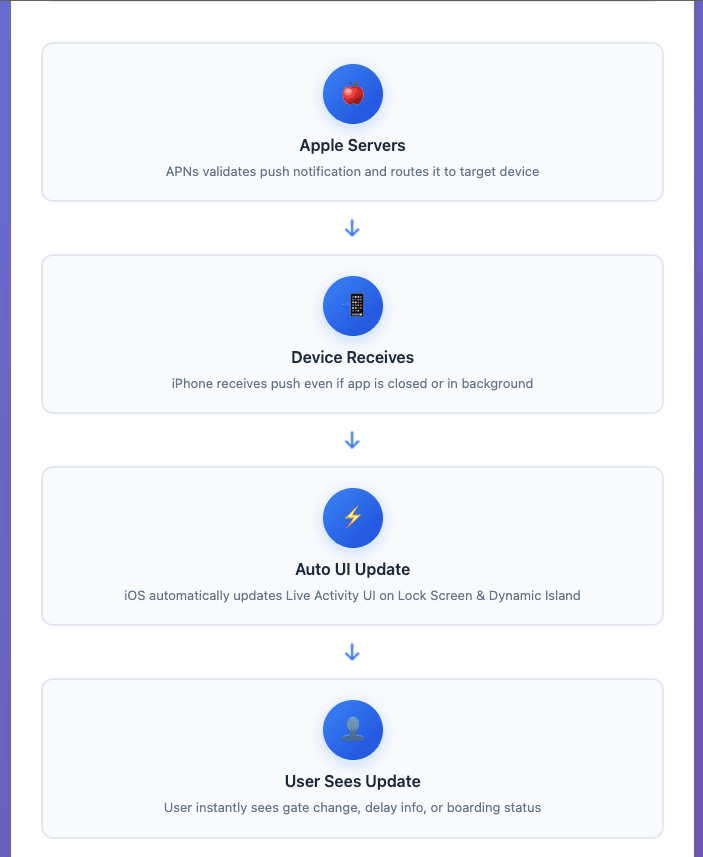

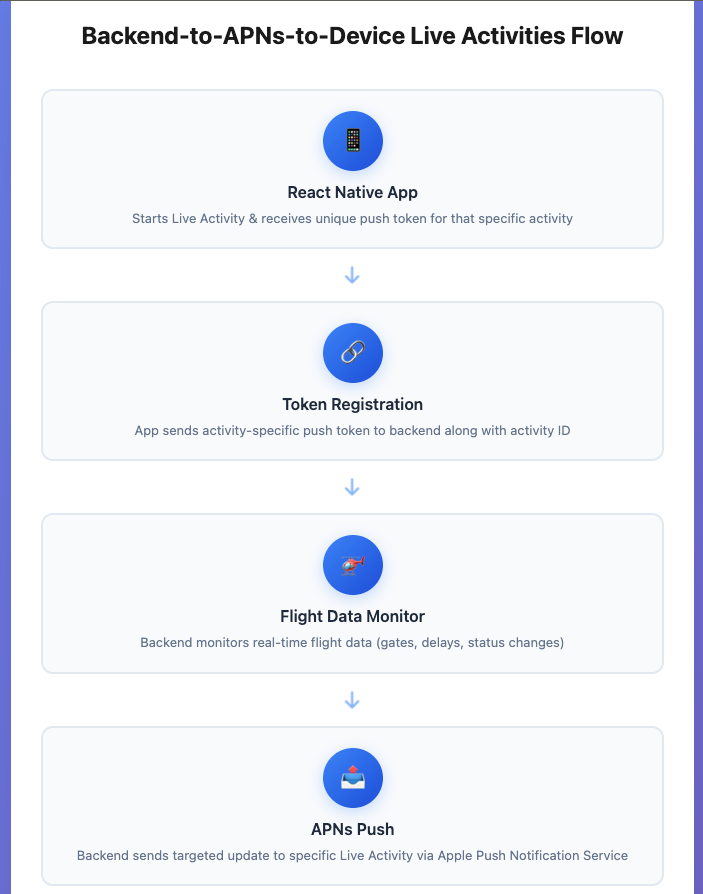

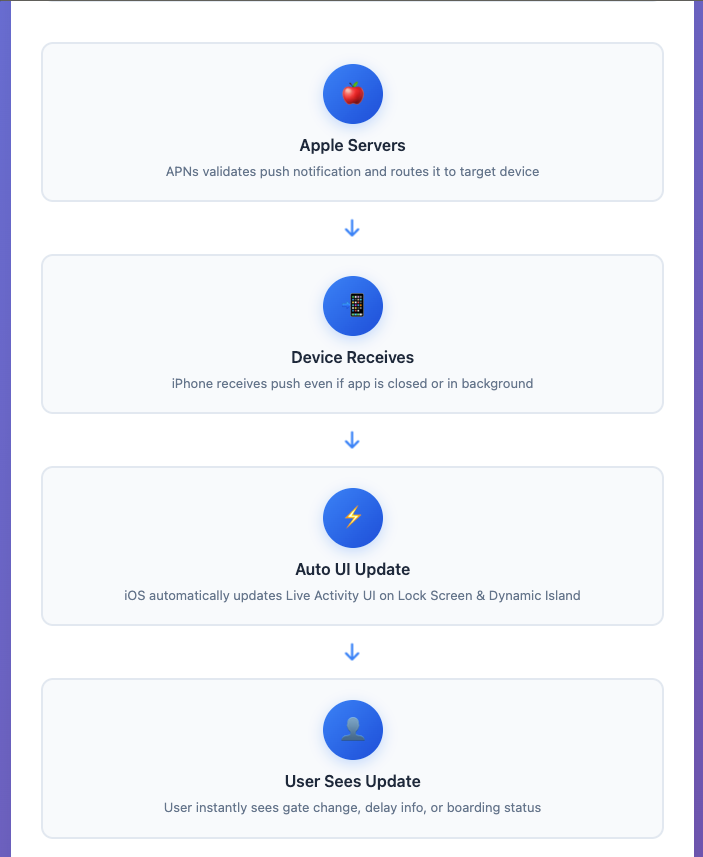

Push Notification Flow:
- App starts Live Activity and receives a unique push token
- Token sent to the backend and stored with the activity ID
- Backend monitors flight data changes
- Real-time updates are sent via APNs to a specific activity
- iOS automatically updates Live Activity UI
Key Flow Benefits
- Updates work even when the app is completely closed
- Each Live Activity has a unique push token
- No polling required - real push notifications
- Automatic UI refresh by the iOS system
- Battery efficient - no background processing
- Multiple activities can run simultaneously
Interactive Elements & Deep Links
AppIntents Implementation
Integration in Live Activity UI
React Native Deep Link Handling:
Push-to-Start Implementation (iOS 17.2+)
Push-to-Start allows your backend to initiate Live Activities without user interaction:
Backend Implementation
Strategic Use Cases:
- Auto-activate tracking 24 hours before departure
- Begin monitoring immediately after successful booking
- Start the activity when the gate is assigned
- Initiate during the mobile check-in process
Business Impact & Implementation Strategy
Engagement Metrics
Live Activities create measurable business value through enhanced user engagement and new revenue streams:
User Engagement:
- 40% higher interaction rates vs traditional push notifications
- 60% reduction in app abandonment during flight delays
- 50% higher session duration when Live Activities are active
Conversion Impact:
- 30% increase in ancillary service bookings (seat upgrades, meals)
- 45% higher click-through rates on cross-sell offers
- 20% reduction in customer support queries
Conclusion
iOS Live Activities represent a significant evolution in mobile user experience, particularly for time-sensitive applications like flight tracking. The technical implementation requires coordination between native iOS development and React Native, but the user engagement and business benefits justify the complexity.
Key Success Factors:
- User-Centric Design: Focus on displaying only essential information that users need at critical moments
- Technical Reliability: Robust error handling and graceful degradation for network issues
- Performance Optimization: Minimize battery impact through intelligent update strategies
- Business Integration: Leverage Live Activities for revenue generation, not just user experience
